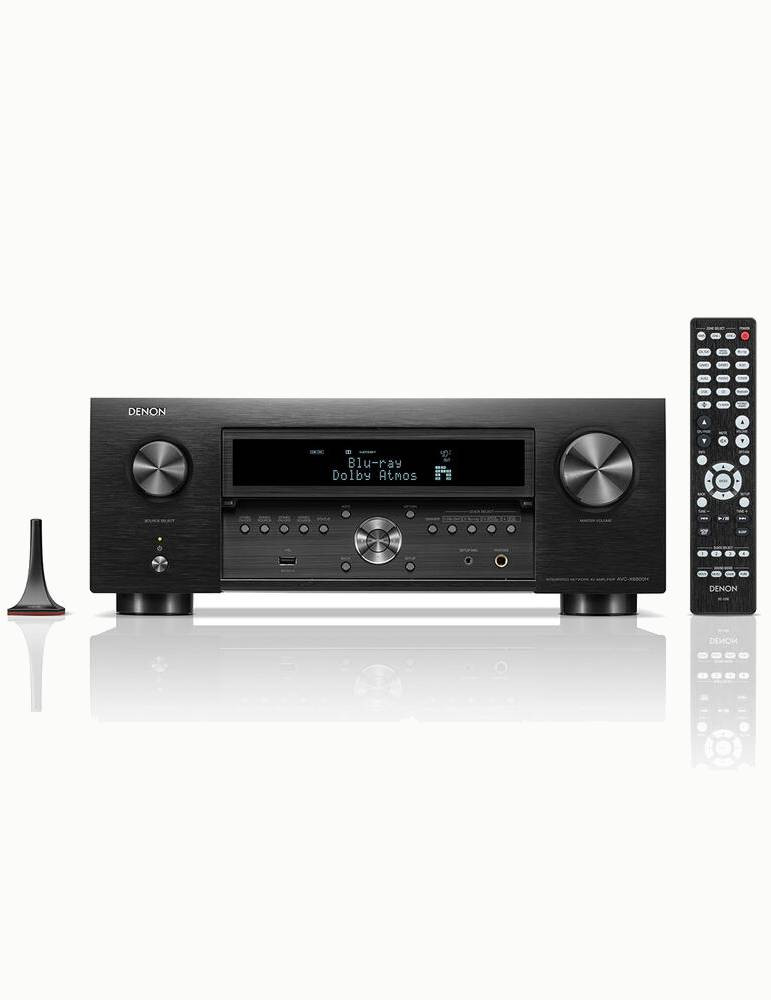

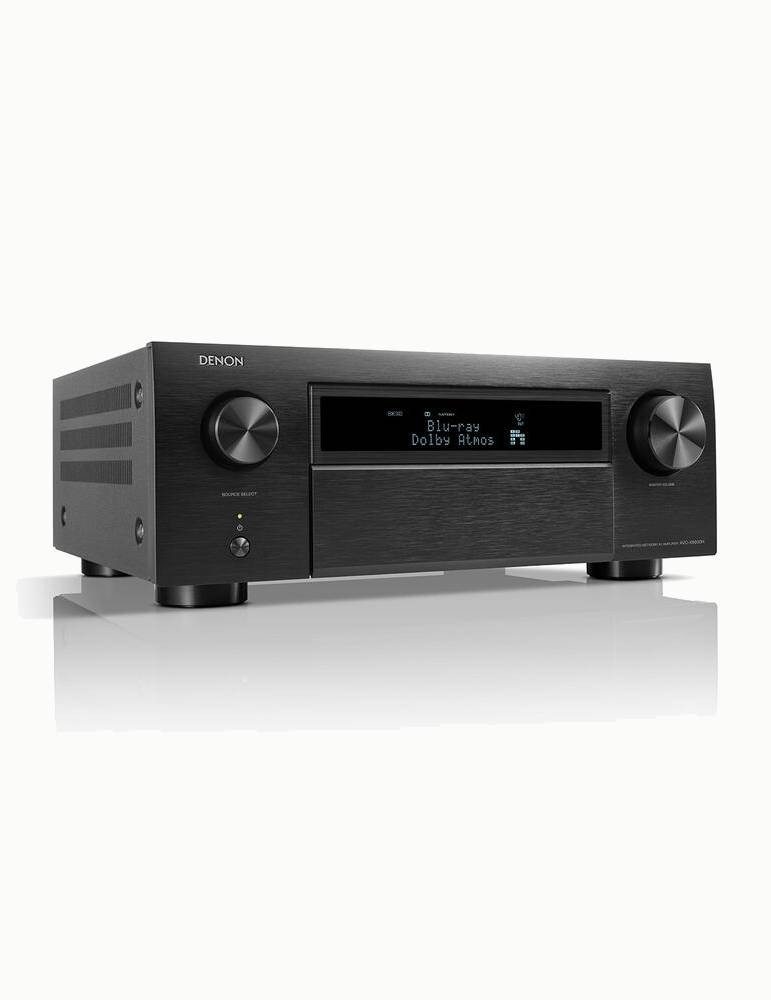

Proiectat și fabricat în Japonia, AVC-X6800H conduce 11,4 canale de amplificare pentru o experiență îmbunătățită. Cu Dolby Atmos și DTS:X, plus IMAX Enhanced și Auro 3D, AVC-X6800H învăluie spații mai mari de locuit într-un sunet 3D uluitor. Cu HEOS® Built-in, transmiteți în flux wireless muzica preferată.

Multichannel Surround

DTS HD Master / DTS:X / DTS:X Pro
DTS Neural:X
DTS Virtual:X
IMAX Enhanced
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music
Dolby Surround
Auro 3D
360 Reality Audio / MPEG H
Multichannel Stereo
Max. number of processing (preamp) channels 13.4

Sound Enhancements

Mono Block Power Amp Construction
Discrete Power Amplifier
D.D.S.C. HD Digital  (32 bit)
Pure Direct
Gold Plated RCA Terminals
Clock Jitter Reducer
Alpha Processing AL32 Processing Multichannel
Audyssey MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume
Audyssey LFC
Dirac Live upgradability
Compressed Audio Restorer

Network

Media Server
HEOS Wireless Multi-Room Technology
Bluetooth Re-transmit for Bluetooth headphones Yes (With volume control)
Alexa / Google Voice Assistant / Apple HomePod
Lossy Formats: MP3 / WMA / AAC
Lossless Formats: FLAC / ALAC / WAV
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
DSD Audio Streaming  (2.8/5.6MHz)
FLAC HD 192/24
WAV 192/24
ALAC 192/24
Gapless playback  (FLAC, WAV, ALAC ,DSD)
AirPlay Audio Streaming  (AirPlay2)
Internet Radio  (TuneIn)
Spotify Connect  (connect)
Pandora
SiriusXM
Other Streaming Services Amazon Music HD/ Amazon Music / TIDAL / Deezer / Soundcloud / Mood Mix
Roon Tested
HEOS App Control
Compatible with Remote APP for Smart Phones Denon AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports
Wi-Fi
Bluetooth

HDMI

HDMI Inputs: Back, Front 7 / -
HDCP2.3 support
HDMI Outputs: Main, Zone 2 / 1
Video conversion Analog -> HDMI
HDMI to HDMI Scaling 1080P/4K to 8K
HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz A
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out 7 / 2 (up to 40Gbps)
HDMI 2.0: 3D / 4K / CEC / ARC
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-Through for Gaming
Variable Refresh Rate / Quick Flame Transport
3D Signal Pass-Through
8K Signal Pass-Through, Scaling, GUI Overlay
4K Signal Pass-Through / Scaling / GUI Overlay
HDMI Pass-Though in Standby Mode
CEC
DSD Audio capability
Audio Return Channel ARC, eARC
Auto LipSync

Multi-room / CI

Multi-Room Zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Pre-Out
Zone HDMI output from HDMI source
IP Control / RS232 Control / Web Control / App Control
Remote In / Out
DC Trigger output 3
HDMI Diagnostics

Others

Auto speaker setup by microphone
Audyssey MultEQ XT32 Dirac Live (upgrade)
Front Display 2 Line FLD
Graphic User Interface - GUI Modern HD GUI
GUI Languages 3
Setup Assistent
Quick Select Plus
Firmware Update by Network / USB
Variable cross over
Optimized Bass Redirection
Bass Sync
ECO Mode
Auto Power Off
Sleep Timer

Inputs Outputs

VIDEO

Composite In / Out 2 / No
Component In / Out 1 / No

HDMI In / Out 7 / 3
Multi-Room Video Out: Video / HDMI No / Yes

AUDIO

Analog In, Out 6 / No
Phono (MM) In Yes
Digital in: Optical/Coaxial 2 / 2
Multi-Room Out: Analog/Digital 2 / No
Multichannel Pre-out Yes (13.4)
Subwoofer Out 4 (independent)

OTHER

Speaker Terminal: Gold-Plated Screw / Regular Screw Yes / No
Number of Speaker Terminals 13
Speaker A / B assignable
Bi-amp drive assignable
Multi-Room Speaker Terminal assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone Yes / No / No
USB Power Supply on Rear Panel Yes
AM/FM Tuner No

Specifications

Number of Power Amps 11
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) 140 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 175 W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive) 205 W

General

Metal Front Panel Yes
System Remote Control RC-1256
Pre-programmed / Learnable / LCD Display Yes / No / No
Power Consumption in W 750
Power Consumption No-Sound (ECO On / Off) in W 65W / 110W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Standby Consumption in W Less than 2.0

Maximum Dimensions

Antenna:Horizontal:(W x D x H) in mm ( Antenna:Vertical :(W x D x H) in mm) 【 w/o Antenna :(W x D x H) in mm】
434 × 389 × 167 (434 x 389 x 237) (434 x 379 x 167)
Carton Dimensions (Packaging) (W x D x H) in mm) 531 x 465 x 303 (mm)
Weight in kg 15.6
Weight in kg (Packaging) 18.2
Power Supply AC 230 V, 50/60 Hz
Speaker Impedance 4–16Ω/ohms

Pre-Amplifier Section

Input Sensitivity 200 mV
Frequency Response 10 Hz–100 kHz — +1, –3dB (Direct mode)
S/N Ratio 102dB (IHF-A weighted, Direct mode)
