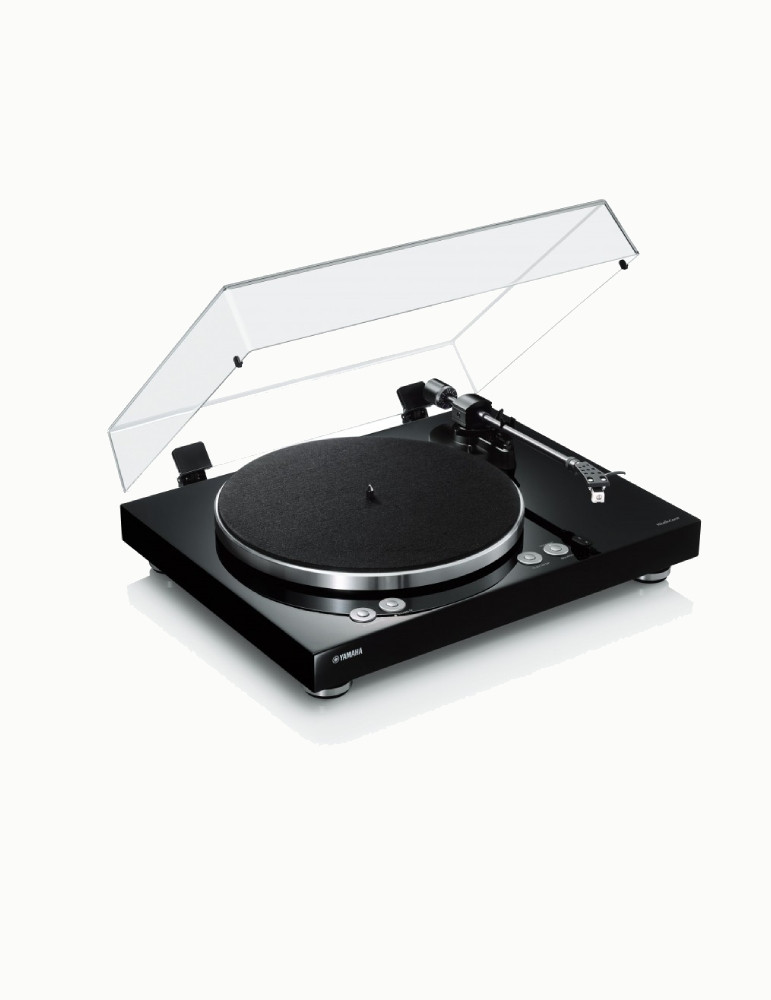

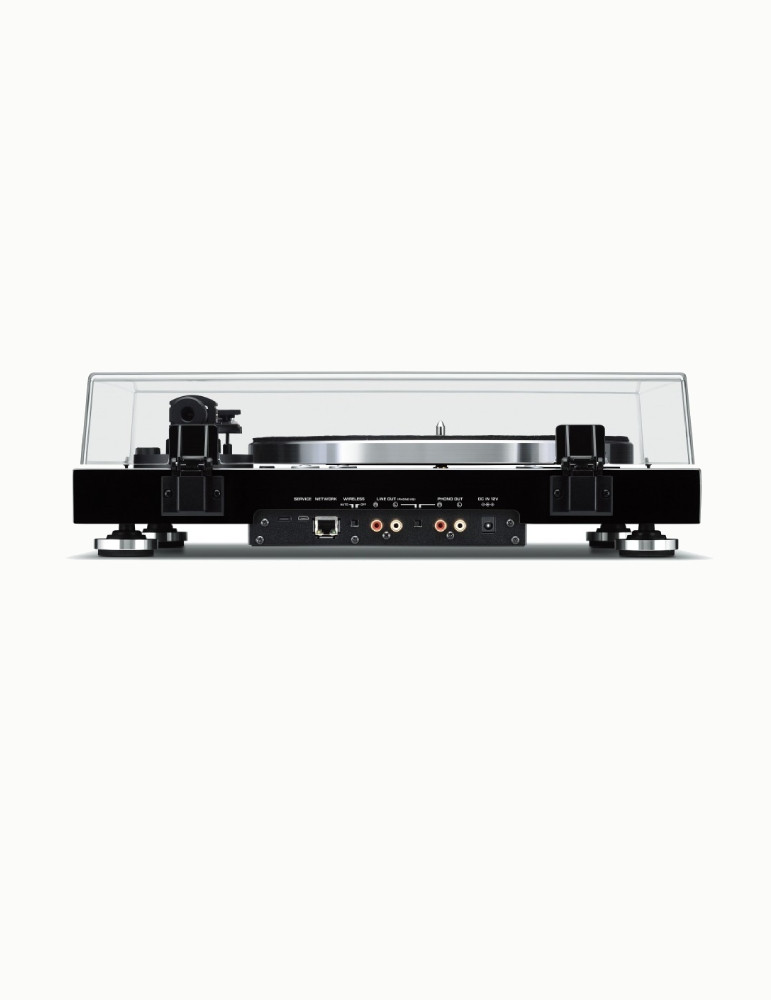

Yamaha MusicCast Vinyl 500
Yamaha MusicCast Vinyl 500

Yamaha MusicCast Vinyl 500

Pickup wireless WiFi MusicCast posibil de configurat cu aplicatia MusicCast multiroom pentru integrare cu alte sisteme multiroom

TTN503
Yamaha
2.999,00 lei
cu TVA
Culoare: Negru
Cantitate
Adauga la favorite
Stoc furnizor - necesita confirmare

Pick-up
  Cel mai bun pret - Daca gasesti un pret mai bun contacteaza-ne pentru o oferta
  Livrare gratuita - Pentru comenzi in valoare de peste 500 lei
  Asistenta pentru instalare - Oferim gratuit asistenta pentru instalarea produselor

Un pas spre viitor, tributar totusi trecutului. Pickup wireless proiectat pentru o noua generatie de audiofili. Avand sistem multiroom MusicCast, poti extinde placerea auditiei discurilor vinil in alte camere.

Conectare wireless catre orice alt sistem MusicCast pentru streaming
Brat drept, pentru transparenta si deschidere a sunetului
Pickup cu curea de transmisie
Servicii de streaming integrat
Wi-Fi incorporat cu suport pentru 2.4 GHz si 5 GHz band

Specificatii tehnice pickup Yamaha MusicCast VINYL 500 (TT-N503)

Network
File Format MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz
Ethernet Yes
Wi-Fi Yes (2.4 / 5 GHz)
AirPlay Yes

Bluetooth

Version/Profile Ver. 4.2 / A2DP, AVRCP
Audio Codec SBC, AAC
Maximum Communication Range 10 m / 32.8 ft. 10 in. (without interferene)

Turntable

Drive Method Belt drive
Motor DC motor
Rotation Speed 33-1/3 rpm, 45 rpm
Rotation Speed Variation ±2%
Wow And Flutter 0.2%
Platter Aluminium die-cast (Diameter 30 cm)
Output Level 450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec)
Signal To Noise Ratio 67 dB or higher (A-weighted, 20 kHz, LPF)

Tonearm

Tonearm Static balance straight tonearm
Effective Arm Length 223.5 mm
Overhang 19 mm
Stylus Pressure Adjustment Range 0-4 g
Acceptable Cartridge Weight 15.5-19 g (including headshell)

Attached Cartridge

Cartridge Type MM type
Output Voltage 2.5 mV (1 kHz, 3.54 cm / sec)
Stylus Pressure 3.5 ± 0.5 g
Cartridge Weight 5.0 ± 0.3 g
Cartridge Height 17.0 ± 0.7 mm
Head-shell Weight 10 g (including screws, nuts and wires)

Audio Specifications

Output Terminal RCA: 2 (PHONO, LINE)
Output Level 2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz)
Signal to Noise Ratio [IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz)
Dynamic Range 100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz)
Harmonic Distortion 0.003 % or lower (1 kHz, 0 dB, Fs 44.1 kHz)
Frequency Response Fs 44.1 kHz; 2 Hz to 20 kHz (+0 / -3 dB), Fs 48 kHz; 2 Hz to 24 kHz (+0 / -3 dB), Fs 96 kHz; 2 Hz to 48 kHz (+0 / -3 dB), Fs 192 kHz; 2 Hz to 96 kHz (+0 / -6 dB)

General

Power Consumption 6 W
Eco-Standby (reference date) 0.3 W
Standby Power Consumption 1.4 W (Network standby ON, Bluetooth® standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standby ON, Wired)
Dimension (W×H×D) 450 x 136 x 368 mm; 17-3/4” x 5-3/8” x 14-1/2”
Weight 5.7 kg

TTN503
